Kubernetes Dashboard with helm

소개

Kubernetes 클러스터를 위한 범용 웹 기반 UI
웹 UI로 클러스터에서 실행 중인 애플리케이션을 관리하고 문제를 해결, 클러스터 자체를 관리 가능
https://github.com/kubernetes/dashboard

설치

helm을 사용해서 설치

# 레포 추가
helm repo add kubernetes-dashboard https://kubernetes.github.io/dashboard/
# kubernetes-dashboard chart 업그레이드, 없으면 설치
helm upgrade --install kubernetes-dashboard kubernetes-dashboard/kubernetes-dashboard --create-namespace --namespace kubernetes-dashboard

kubernetes-dashboard namespace에 설치

cert-manager및 nginx-ingress-controller 필요하기에 자동으로 설치된다.
만약 이미 있다면
--set=nginx.enabled=false
--set=cert-manager.enabled=false
을 추가하여 설치한다.

install cert-manager
가끔씩 꼬여서 직접 하나하나 설치해야할 때가 있어서 올린다.

helm repo add jetstack https://charts.jetstack.io
helm repo update

helm install \
  cert-manager jetstack/cert-manager \
  --namespace cert-manager \
  --create-namespace \
  --version v1.12.0 \
  # --set installCRDs=true

• --set installCRDs=true : Helm은 Certificate CRD를 쿠버네티스에 설치합니다.

Pod 보안 정책 및 승인

kubectl label --overwrite ns kubernetes-dashboard pod-security.kubernetes.io/enforce=baseline

제거방법

helm delete kubernetes-dashboard --namespace kubernetes-dashboard

다른 설치 방법 kubernetes 설치 방법 공식문서
https://kubernetes.io/ko/docs/tasks/access-application-cluster/web-ui-dashboard/

설치후 접속

port-forward 방식으로 접속
https://localhost:8443 으로 접속할 수 있다.

kubectl -n kubernetes-dashboard port-forward svc/kubernetes-dashboard-nginx-controller 8443:443

helm 기본 설치하면 nginx-controler 에서 roadbalaner 로 설정이 되어 있는데
이것을 nodeport로 바꿔주면 편하게 접속 할 수 있다.
또한 spec: host , tls: 부분의 localhost를 제거하면 외부에서도 접속이 가능하게 된다.

k edit ingress -n kubernetes-dashboard kubernetes-dashboard

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    cert-manager.io/issuer: selfsigned
    meta.helm.sh/release-name: kubernetes-dashboard
    meta.helm.sh/release-namespace: kubernetes-dashboard
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
  creationTimestamp: "2023-07-13T05:34:04Z"
  generation: 2
  labels:
    app.kubernetes.io/instance: kubernetes-dashboard
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/part-of: kubernetes-dashboard
    helm.sh/chart: kubernetes-dashboard-7.0.2
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
  resourceVersion: "141089"
  uid: 453cfb33-d40f-4ed6-b350-b8074de20a92
spec:
  ingressClassName: nginx
  rules:
  - http:
      paths:
      - backend:
          service:
            name: kubernetes-dashboard-web
            port:
              name: web
        path: /
        pathType: ImplementationSpecific
      - backend:
          service:
            name: kubernetes-dashboard-api
            port:
              name: api
        path: /api
        pathType: ImplementationSpecific
  tls:
  - secretName: kubernetes-dashboard-certs
status:
  loadBalancer:
    ingress:
    - ip: 10.97.171.155

dashboard user 만들기

ClusterRoleBinding-admin-user.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard

ServiceAccount-admin-user.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard

make Dashboard Token

kubectl -n kubernetes-dashboard create token admin-user

실행 후 나온 토큰을 저장해 두고 로그인을 한다.

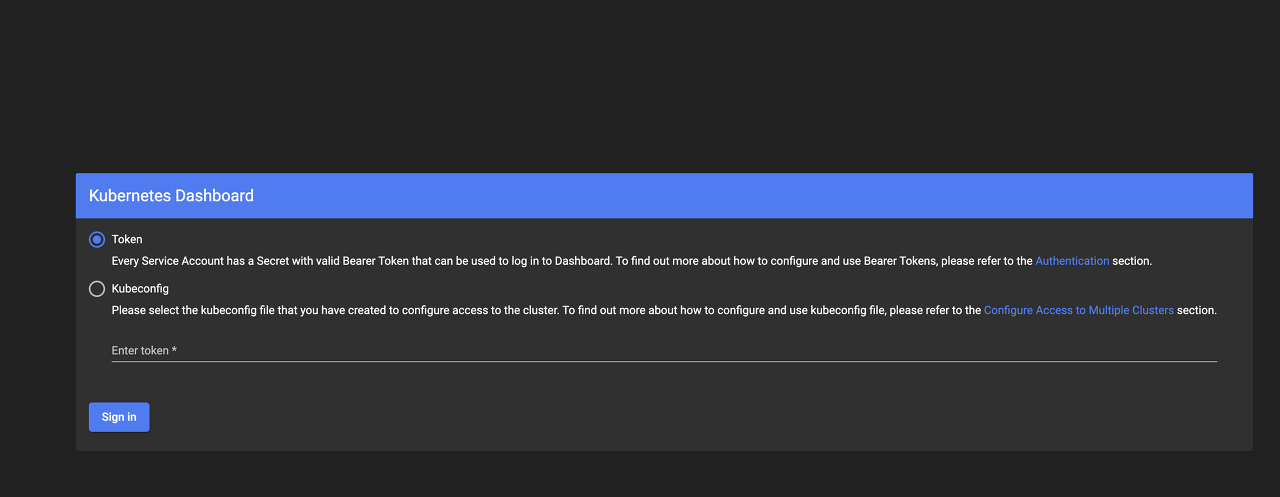

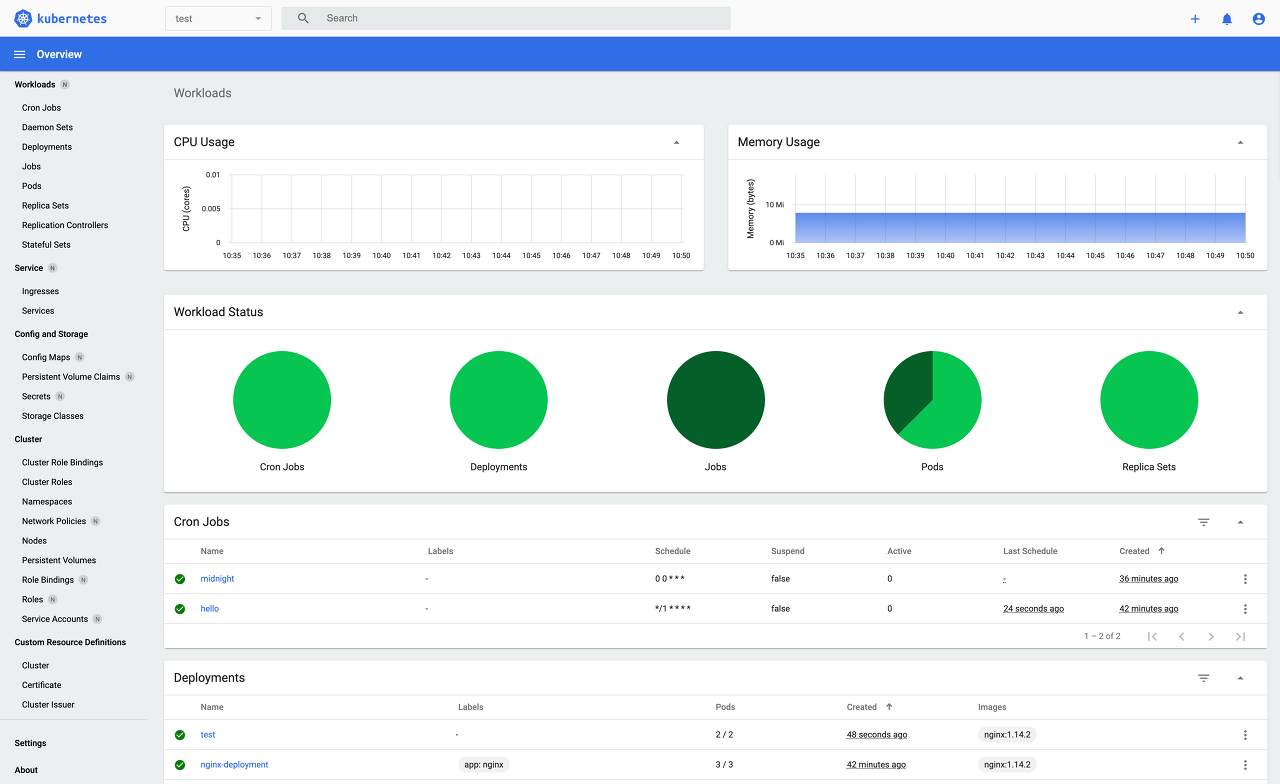

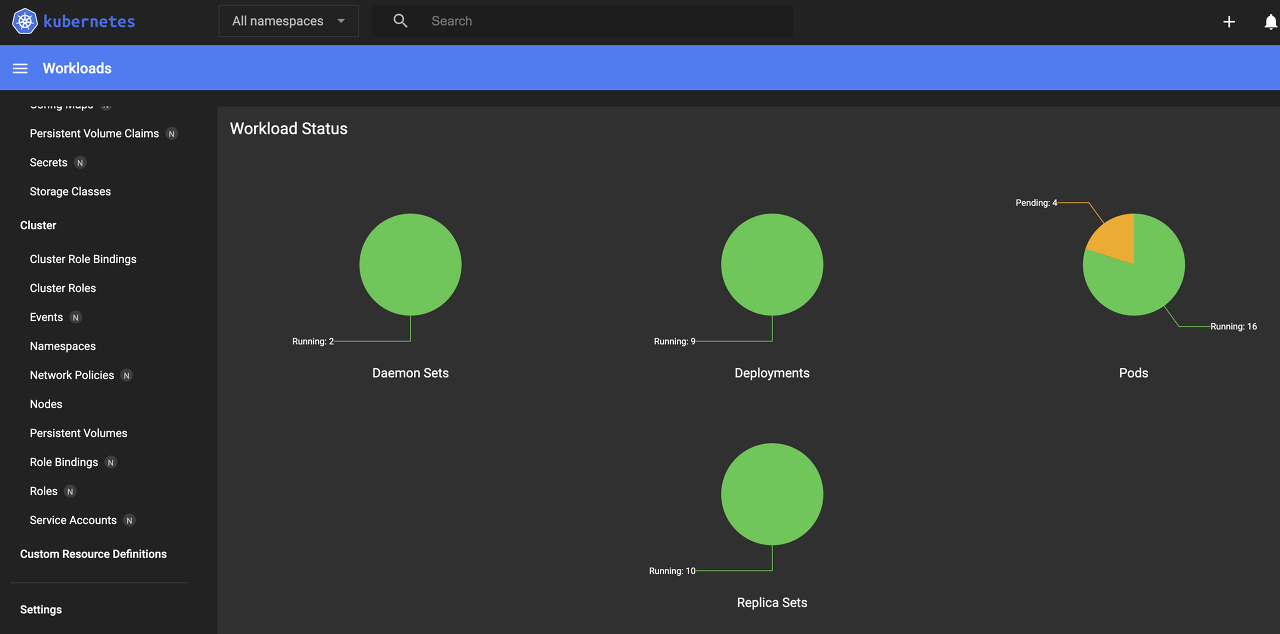

접속화면

TS

Error: failed post-install: warning: Hook post-install kubernetes-dashboard/templates/networking/post-install-ingress-issuer.yaml failed: 1 error occurred:
        * Internal error occurred: failed calling webhook "webhook.cert-manager.io": failed to call webhook: Post "https://kubernetes-dashboard-cert-manager-webhook.kubernetes-dashboard.svc:443/mutate?timeout=10s": dial tcp 10.107.187.120:443: connect: connection refused

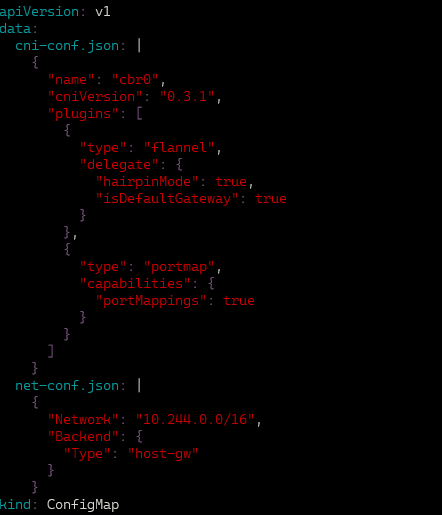

kubectl edit configmaps -n kube-flannel kube-flannel-cfg

kind: ConfigMap
apiVersion: v1
metadata:
  name: kube-flannel-cfg
  namespace: kube-system
  labels:
    tier: node
    app: flannel
data:
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "host-gw"
      }
    }

k delete pods -n kube-flannel kube-flannel-ds-f8mcv kube-flannel-ds-q76v4 kube-flannel-ds-stqf9

오류 시 여러가지 시도해볼 것들

--kubelet-insecure-tls=true

--enable-aggregator-routing = true

--set startupapicheck.timeout=5m --set installCRDs=true

helm upgrade --install kubernetes-dashboard kubernetes-dashboard/kubernetes-dashboard --create-namespace --namespace kubernetes-dashboard --set startupapicheck.timeout=5m --set installCRDs=true --set=api.nodeSelector.node-name=instance-ubuntu-arm,web.nodeSelector.node-name=instance-ubuntu-arm

webhook관련오류 webhook.securePort=10260 로 바꿔서

helm install cert-manager jetstack/cert-manager --namespace cert-manager --create-namespace --version v1.9.0 --set startupapicheck.timeout=5m --set installCRDs=true --set webhook.hostNetwork=true --set webhook.securePort=10260

admin 계정 모든 권한

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: admin-user-clusterrole
rules:
- apiGroups: ["*"]
  resources: ["*"]
  verbs: ["*"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user-clusterrolebinding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: admin-user-clusterrole
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard

공식문서
https://github.com/kubernetes/dashboard
